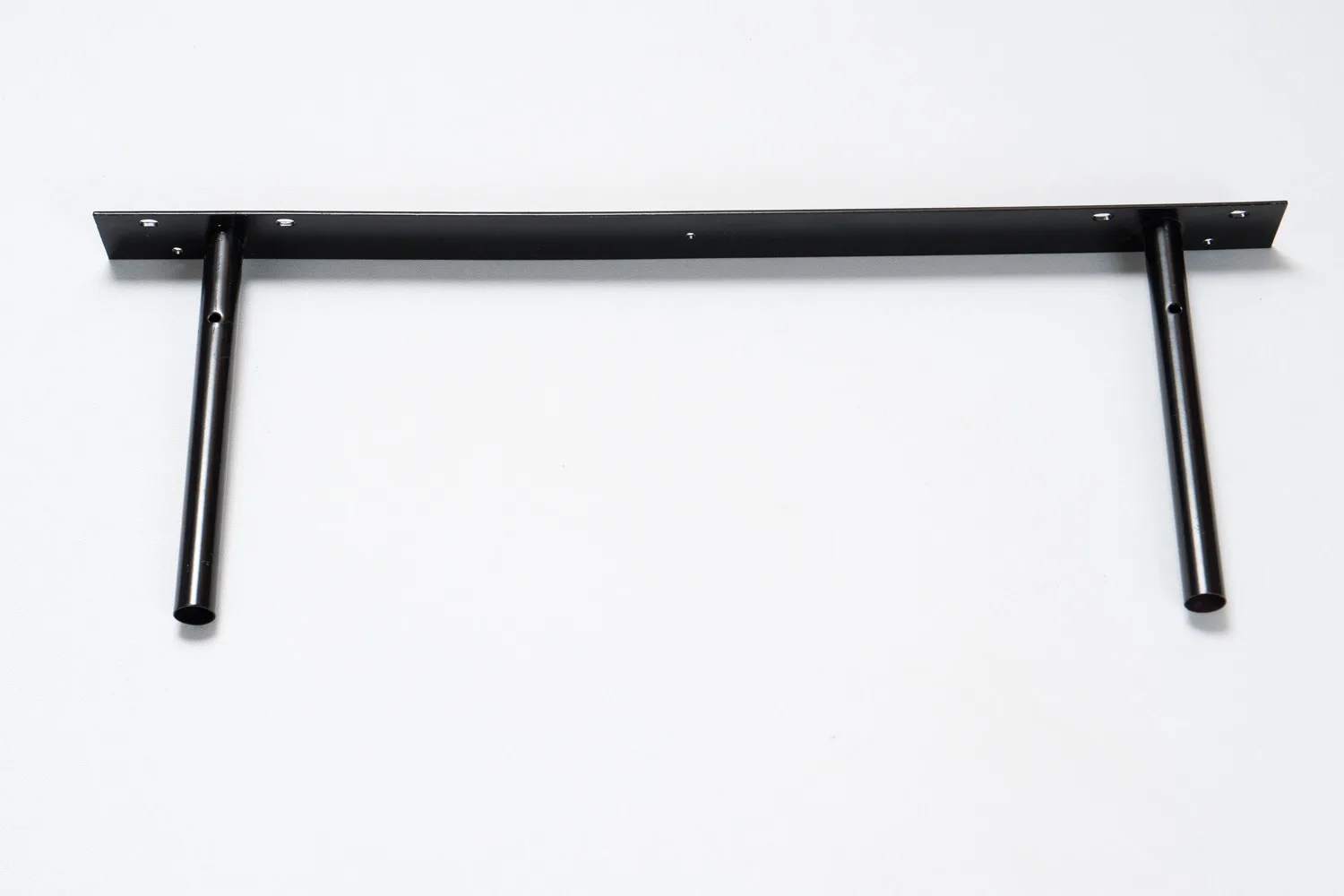

Floating Shelf Bracket 48Lx17.5Dx3Tcm

Description

This bracket can suit a floating shelf in size 50-90 cm in length, up to 25cm depth and minimum of approximately 35mm thickness.
The bracket is screwed to the wall (there are 7 predrilled holes in bracket base) and the custom shelf fitted on to the support tubes once holes have been bored into the shelf to suit the tube specifications.
The shelf is secured through two holes, note the support tubes have a slight upward angle to help compensate for any shelf droop when shelf is loaded up.
The bracket base piece is 48cm long x 3cm deep and is 2.5mm thick.
Support tubes are 19mm diameter and 17.9cm long measured from front face of base. The measurement from centre to centre of the tubes is 360mm
Multiple holes provided for fixing to the wall, however other holes can be drilled if required to coincide with studs in a hollow wall situation. Hollow wall anchors can be used if fitting to cavity type walls available here. Minimum of 3 are required per bracket.[block id=”floating-shelf-video”][block id=”floating-shelf-bracket-video”]
