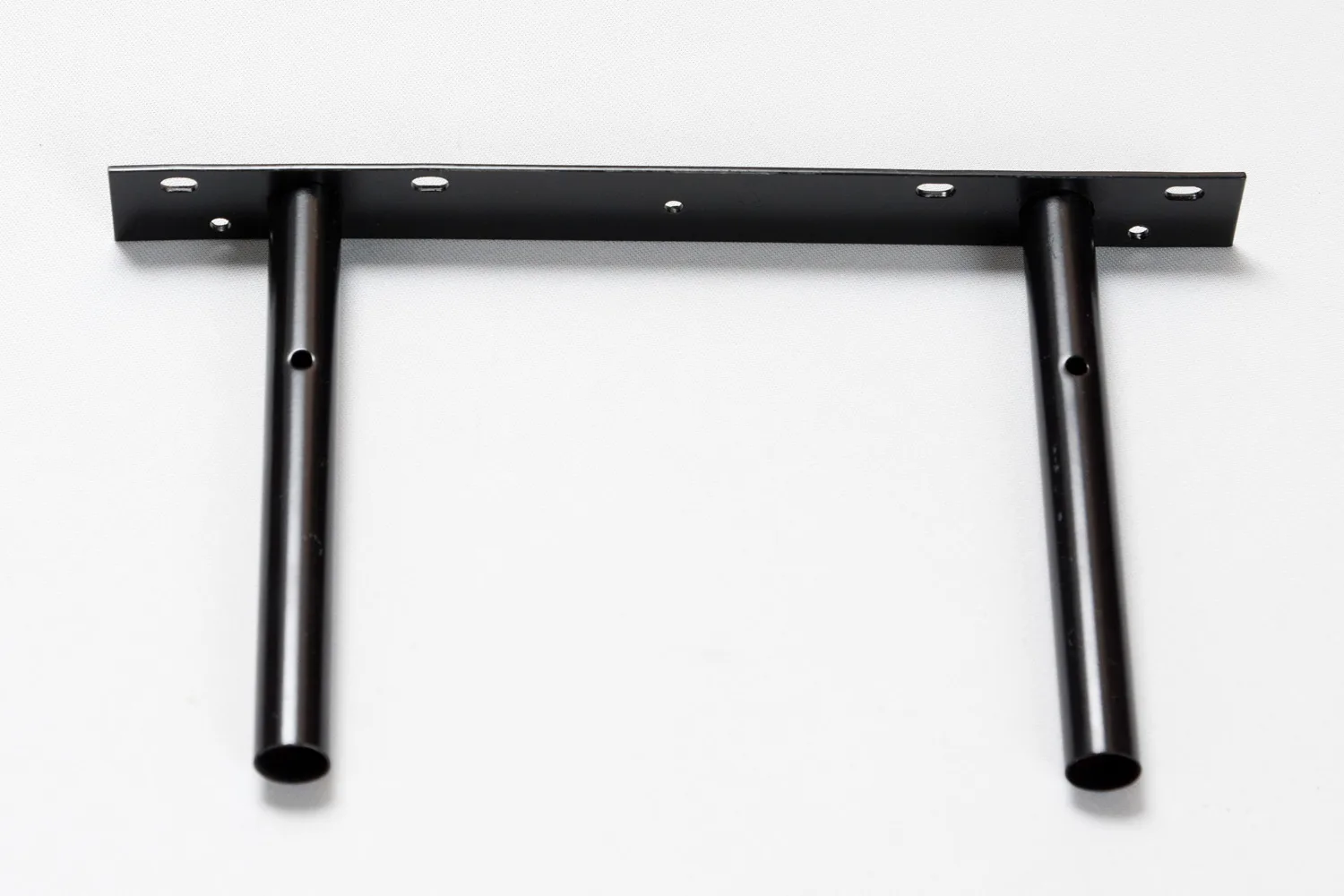

Floating Shelf Bracket 30Lx17.5Dx3Tcm

Description

Suits a floating shelf in size 40-50 cm in length to 25cm depth, and minimum of approximately 38 mm thickness. Note multiple brackets can be used for longer shelves. Weight capacity of the bracket is reduced when used to fit deeper shelves.
The bracket is screwed to the wall (there are 7 predrilled holes in bracket base) and the custom made shelf slipped on to the pipe arms.
The shelf can be secured through two holes in the pipe arms. Note the pipe arms have a slight upward angle to compensate for any shelf droop when a floating shelf is loaded up.
Bracket base piece is 30cm long x 3cm deep and is 2.5mm thick.
Pipe arms are 19mm diameter and 17.5cm long from front face of base and spaced at 20cm centers.
Multiple holes are provided for fixing to the wall, however other holes can be drilled if required to coincide with studs in a hollow wall situation Hollow wall anchors can be used if fitting to cavity type walls available here. Minimum of 3 are required per bracket. Weight capacity of the bracket is then dependent on the strength of the wall sheeting.[block id=”floating-shelf-video”][block id=”floating-shelf-bracket-video”]
