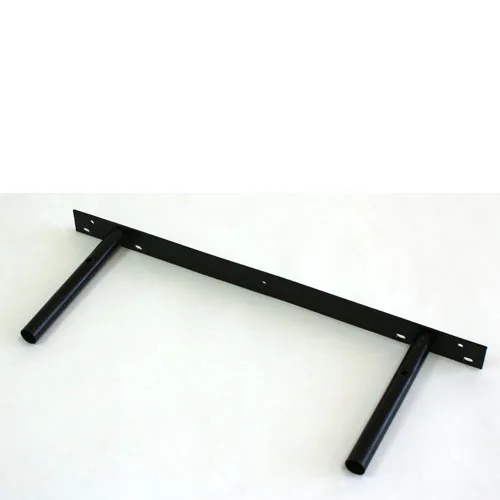

Floating Shelf Bracket 63Lx19.5Dx4Hcm

Description

This bracket can suit a floating shelf in dimensions of up to 1200mm in length 300mm depth and minimum of approx. 45mm thickness.Weight capacity can be up to 25KG of evenly distributed load if fitted correctly to solid brick type walls.(depending on wall type, fixings used, shelf size and importantly depth). Weight capacity decreases when used to support deeper or longer shelves, or fitted only to gyprock sheeting in cavity type walls. (weight capacity of the bracket will then be limited to the strength of the gyprock sheet)
Bracket is fitted to the wall using correct screws and fittings, and shelf fitted on to the pipe arms.
The shelf can be secured through two pre drilled holes in the pipe arms or by a silicone type adhesive. Note the pipe arms have a slight upward angle to compensate for any shelf droop when shelf is loaded up, so bracket must be fitted with the arrow indicator facing upwards.
Bracket base piece is 63cm long x 4cm deep and is 2.0mm thick steel.
Pipe arms are 19mm diameter and 19.5cm long measured from front face of the bracket base. Pipes are spaced at 51cm centers.
Multiple holes provided for fixing to the wall, however extra holes can be drilled if required to coincide with studs if fixing to a hollow wall. Maximum weight rating is achieved when fixing to solid walls, or into studs in a hollow gyprock type wall. Note the weight rating of the bracket decreases as shelf depth or length is increased. Hollow wall anchors can be used if fitting to cavity type walls available here. Minimum 5 required per bracket.[block id=”floating-shelf-video”][block id=”floating-shelf-bracket-video”]
